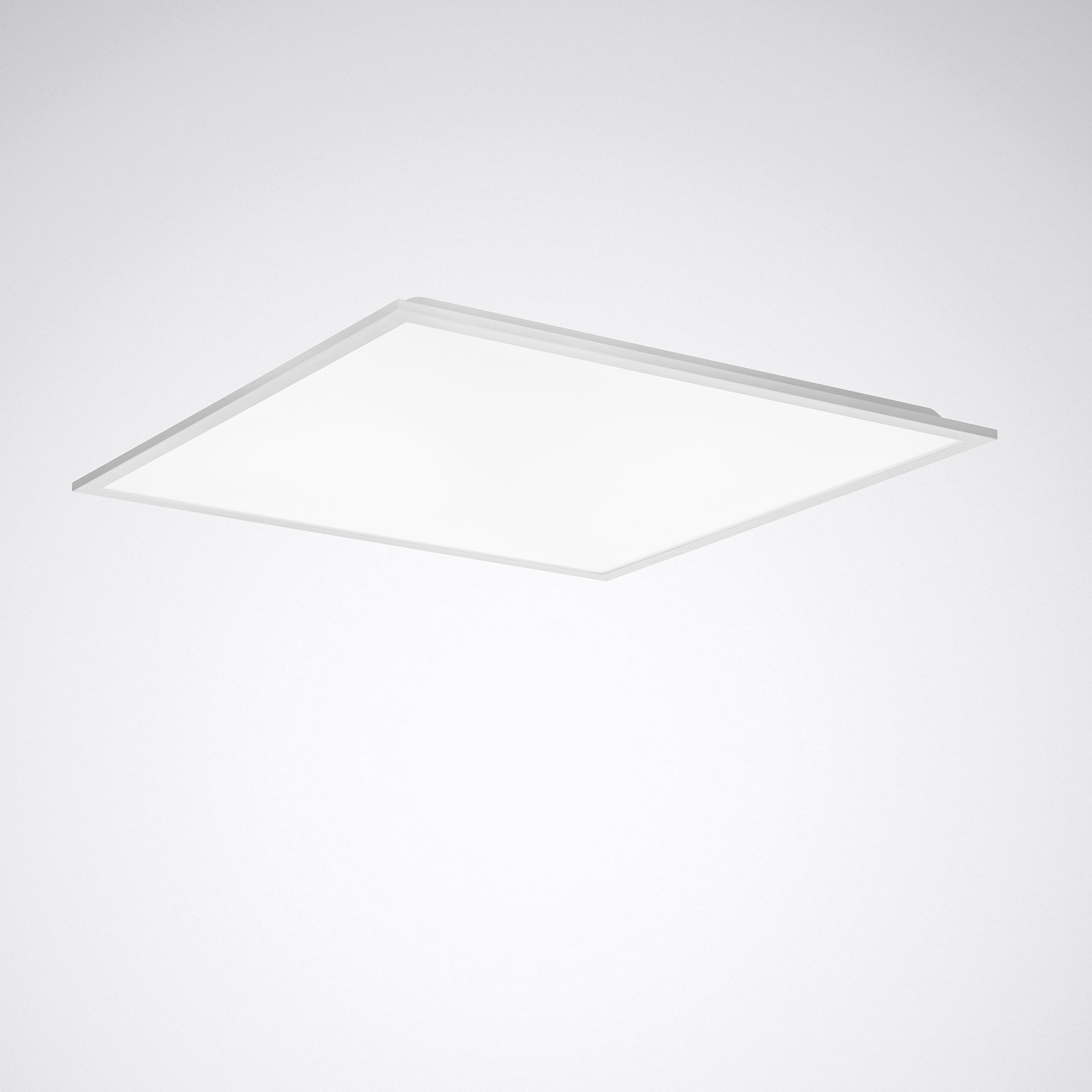

2330 LED
LED recessed luminaire
  • Light colour adjustable (multi-colour)
  • Luminous flux adjustable (multi-lumen)
  • VDU workstation-compliant

Buy now Series data sheet


 2325_produktgrafik_2022.png  2340_G2.png

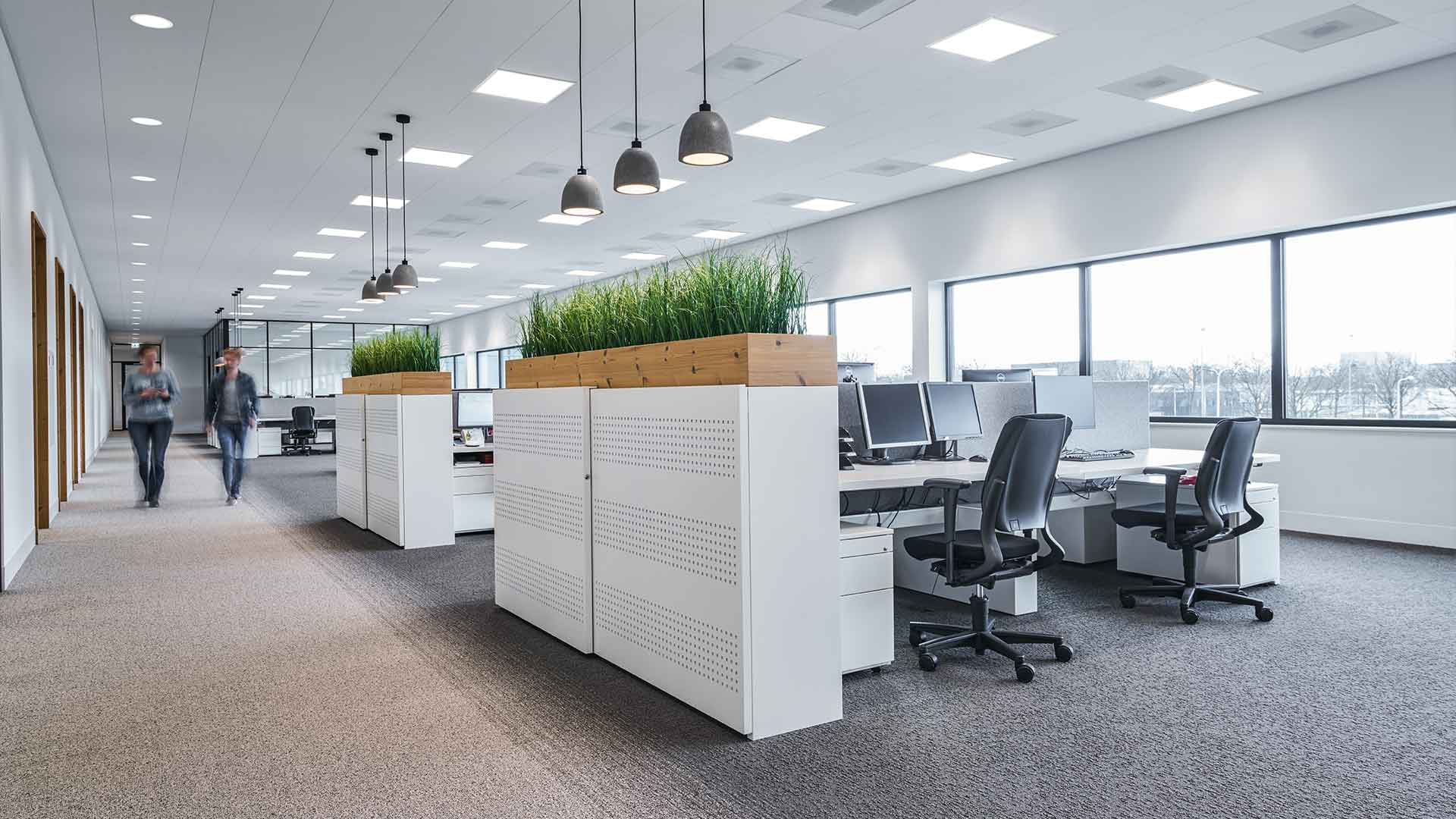

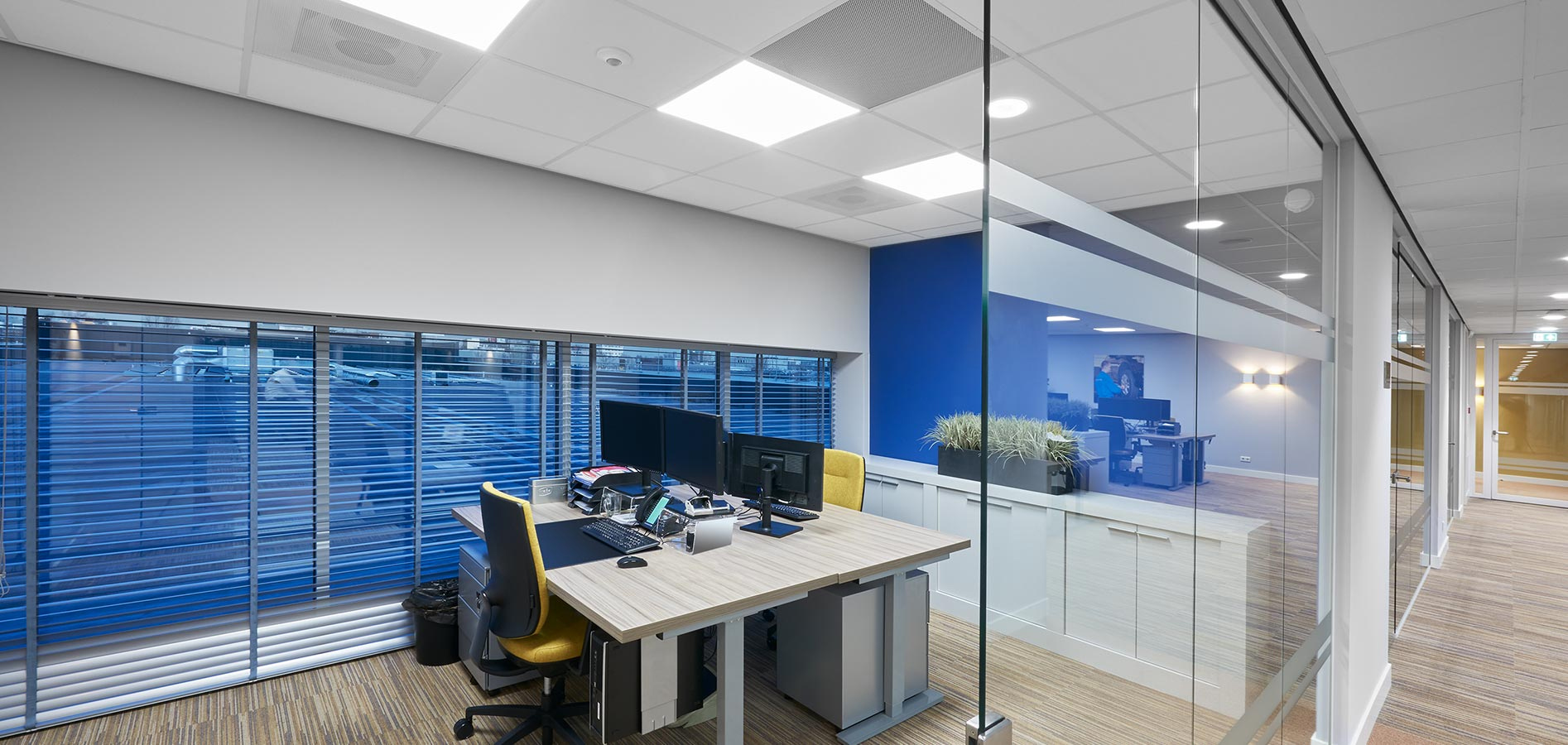

2330 LED is a recessed luminaire for system ceilings in 600 x 600 mm grid size. It scores points with pleasantly uniform light distribution and with UGR < 19 is suitable for VDU workstations. With adjustable light colour (multi-colour) and adjustable luminaire luminous flux (multi-lumen), the luminaire can be adapted to local conditions. Typical applications are offices, corridors, foyers, conference rooms, sales areas and waiting zones. This will get the job done!

Why you’ll get the job done with the 2330 LED recessed luminaire

  • Flexible use with multi-lumen and multi-colour: two luminous fluxes and light colours in one luminaire.
  • Pleasant light effect due to uniform illumination, suitable for VDU workstations (UGR < 19).
  • Separate control gear unit simplifies installation (and replacement).
  • 1:1 replacement of conventional luminaires offering time and cost savings during refurbishment.
  • Can be covered with insulation material (not ETWD / Wireless Connect types)
  • High efficiency (up to 116 lm/W).
  • Reliable service life (50,000 h, L70).
  • Additional installation possibilities with suspension accessories (available separately)

2330 S

Sustainability at a glance

  • Verified CO₂ compensation
  • Higher energy efficiency: 120 lm/W
  • Increased service life: 50,000 h, L70

2330 LED at a glance

Dimensions:
595 x 595 x 34 mm

Luminaire luminous flux:
3.600 lm, 2.900 lm (Multilumen)

Colour Temperature:
Ra > 80
3,000 K, 4,000 K (multi-colour), 6,500 K

Connected load:
31 W, 24 W

Protection rating, Safety class:
IP20 / IK02 / I

Weight:
2,2 kg

Lightmanagement:
LiveLinkReady (ETDD)
Wireless Connect (ETWD)

Service life:
50.000 h (L70)

Downloads

Series data sheet Light technical data / Photometrics (LDT) Mounting Instruction Mounting instructions accessories

montagevideo

All versions of 2330 LED

product reference TOC Luminous flux [lm] Wattage [W] Light colour [K] Dimensions LxWxH [mm] Replacement data sheet

Multi-colour / multi-lumen

2330 G3 M73 PW19 36/29/ML-840 ET

7631940

3600 / 2900

31 / 24

4000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 36/29/ML-830 ET

7632040

3400 / 2800

31 / 24

3000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 36/29/ML-865 ET

7767740

3600 / 2900

31 / 24

6500

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 36/29/ML-8MC ET

7798540

3600 / 2900

31 / 24

3000 / 4000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

DALI dimmable

2330 G3 M73 PW19 3600-830 ETDD

7631851

3400

31

3000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 3600-840 ETDD

7631751

3600

31

4000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 3600-865 ETDD

7767651

3600

31

6500

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

Wireless Connect

2330 G3 M73 PW19 3600-830 ETWD

7631865

3400

31

3000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

2330 G3 M73 PW19 3600-840 ETWD

7631765

3600

31

4000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

CO2 compensation / Multilumen

2330 G3 S M73 PW19 36/29/ML-840 ET

8332840

3600 / 2900

30

4000

595 x 595 x 34

3 x 14 / 4 x 14 / 3 x 18 / 4 x 18 W

Download

7631940

7632040

7767740

7798540

7631851

7631751

7767651

7631865

7631765

8332840

000000000010226513 000000000010226514 000000000010226515 000000000010226516 000000000010229191 000000000010229192 000000000010229193 000000000010229194 000000000010238431 000000000010242487 000000000010242488 000000000010250052 000000000010250054 000000000010258750 000000000010258751 000000000010258752 000000000010258753 000000000010307056 000000000010307334

Accessories for 2330 LED

product reference TOC Luminous flux [lm] Wattage [W] Light colour [K] Dimensions LxWxH [mm] data sheet

2330 G3 ZH/M73 M84

7716400

Suspension accessories

Zinc

100 x 80 x 15

0,2 kg

Download

7716400

000000000010226513 000000000010226514 000000000010226515 000000000010226516 000000000010229191 000000000010229192 000000000010229193 000000000010229194 000000000010238431 000000000010242487 000000000010242488 000000000010250052 000000000010250054 000000000010258750 000000000010258751 000000000010258752 000000000010258753 000000000010307056 000000000010307334
