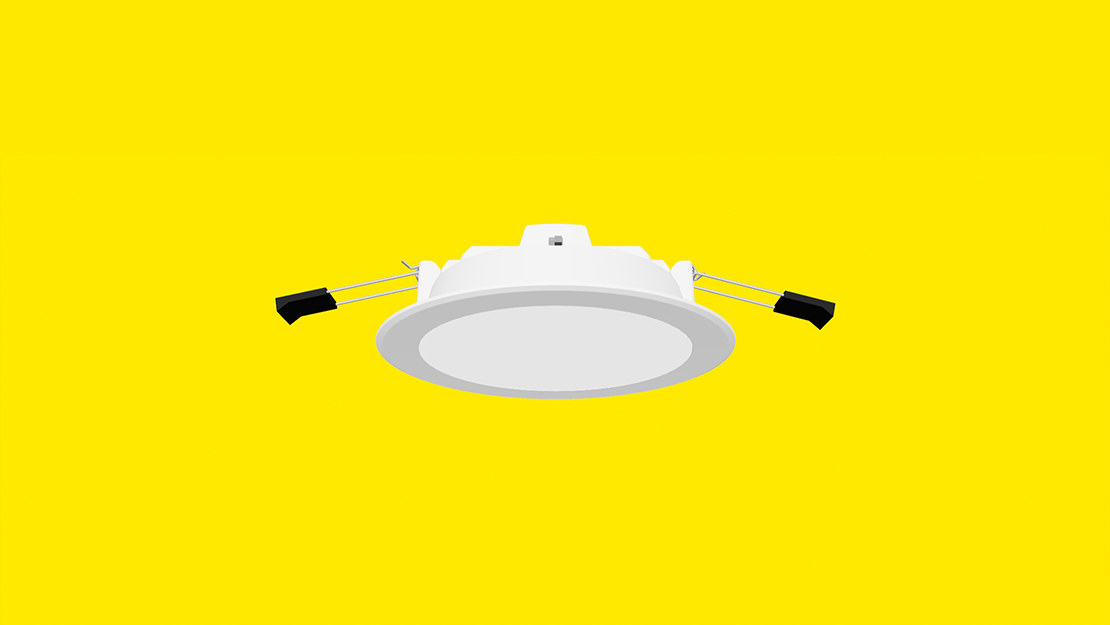

2325 LED downlight – for ceilings with shallow recess depths

2325 LED

Planar LED downlight

Multilumen and Multicolor
Sustainable luminaires: 2325 S
Flexible mounting

The 2325 LED G3 downlight is the perfect option for lighting refurbishments due to its versatility and flexibility. Multilumen technology provides three luminaire luminous fluxes and Mulitcolour offers a choice of light colours in one luminaire. With refurbishment rings it is suitable for most ceiling openings. The 2325 LED is ideal for reception areas, hotels, restaurants, sales areas, meeting and recreation rooms as well as corridors. Sustainable luminaires 2325 S with verified CO₂ compensation. With this you master the job!

2325 S

Sustainability at a glance

Verified CO₂ compensation
Higher energy efficiency: 120 lm/W
Increased service life: 50,000 h, L70
Modular design for optimum recycling

Why you’ll get the job done with the 2325 G3 LED downlight

NEW: Multilumen and Multicolour: Adjustable luminous flux (2,000 lm, 1,400 lm, 800 lm) and light colors (3,000 K, 4,000 K)
NEW: With refurbishment rings suitable for ceiling openings from 150 mm to 250 mm
Toolless ceiling installation due to quick mounting springs
Very low recess depth (43 mm incl. control gear unit)
Pleasant light effect due to uniform illumination
High efficiency (up to 105 lm/W) and reliable service life (50,000 h, L65).
Sustainable luminaires 2325 S with higher efficiency and service life.

2325 LED at a glance

Dimensions:
Ø 170 x 43 mm; Ø 230 x 43 mm

Luminaire luminous flux:
2.000 lm, 1.400 lm , 800 lm (Multilumen)

Colour temperature:
3,000 K, 4,000 K

Protection class:
IP20 / IP44 (on room side) / IK02

Safety class:
II

Weight:
0,4 kg, 0,5 kg

Downloads

Series data sheet 2325 G3 Installation instructions 2325 SP Installation instructions Certificate of Sustainability

Assembly video

All versions of 2325 LED

Product reference	TOC	Luminous flux [lm]	Wattage [W]	Light colour [K]	Dimensions LxWxH [mm]	Replacement	Data sheet
CO₂ compensation / Multilumen
2325 G3 C05 S OA LED 20/14/08/ML-840 ET	7790940	2000 / 1400 / 800		4000	Ø 170 x 43 mm	1 x 13 TC-TEL / 1 x 18 TC-TEL 1 x 26 TC-TEL / 1 x 32 TC-TEL 2 x 13 TC-TEL / 2 x 18 TC-TEL	Download
2325 G3 C07 S OA LED 20/14/08/ML-840 ET	7791040	2000 / 1400 / 800		4000	Ø 230 x 43 mm	1 x 13 TC-TEL / 1 x 18 TC-TEL 1 x 26 TC-TEL / 1 x 32 TC-TEL 2 x 13 TC-TEL / 2 x 18 TC-TEL	Download
Multi-colour / multi-lumen (light colour and luminous flux adjustable)
2325 G3 C05 OA LED 20/14/08/ML-8MC ET	7791140	2000 / 1400 / 800	19 / 13 / 8	3000 / 4000	Ø 170 x 43 mm	1 x 13 TC-TEL / 1 x 18 TC-TEL 1 x 26 TC-TEL / 1 x 32 TC-TEL 2 x 13 TC-TEL / 2 x 18 TC-TEL	Download
2325 G3 C07 OA LED 20/14/08/ML-8MC ET	7791240	2000 / 1400 / 800	19 / 13 / 8	3000 / 4000	Ø 230 x 43 mm	1 x 13 TC-TEL / 1 x 18 TC-TEL 1 x 26 TC-TEL / 1 x 32 TC-TEL 2 x 13 TC-TEL / 2 x 18 TC-TEL	Download

Parts for 2325 LED

Product reference	TOC	Description	Colour	Dimensions L x W x H [mm]	Weight		Data sheet
2325 G3 C05 SP 200	8120600	Mounting accessories / refurbishment ring for ceiling cutouts Ø 150 - 200 mm.	White	Ø 215 x 11	0,1 kg		Download
2325 G3 C07 SP 250	8120500	Mounting accessories / refurbishment ring for ceiling cutouts Ø 200 - 250 mm.	White	Ø 275 x 11	0,1 kg		Download
