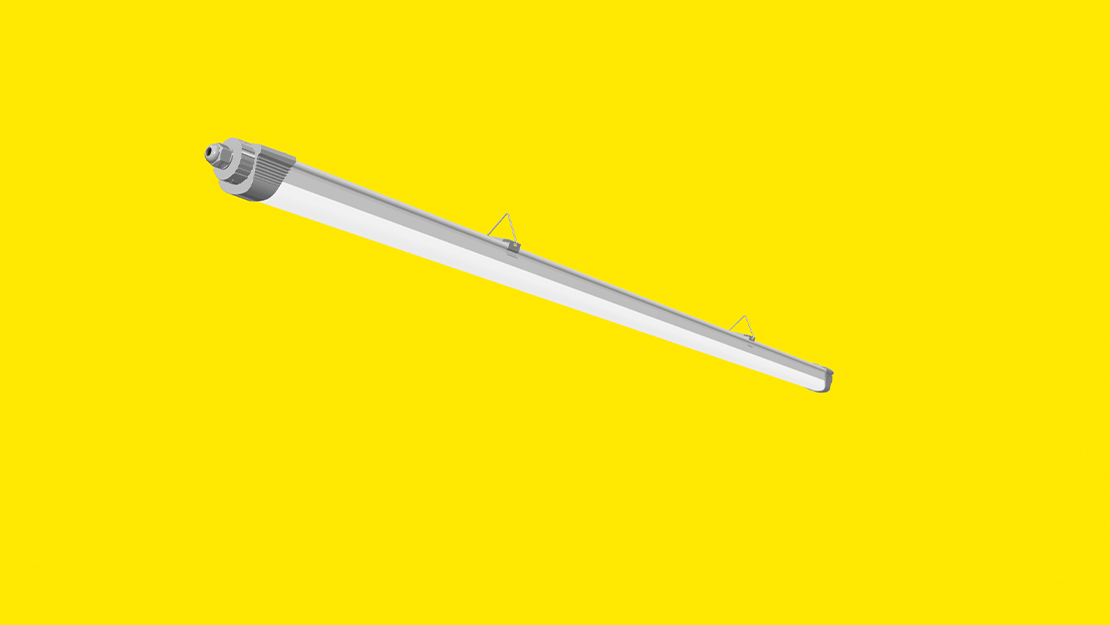

2315 LED
LED weather-proof luminaire
  • Multilumen and Multicolour
  • Flexible mounting options
  • Refurbishment solution

Buy now Series data sheet


 2310_LED.png  2325_produktgrafik_2022.png

The 2315 G4 LED is the ideal weather-proof luminaire for car parks, storage areas, production areas and covered outdoor areas, for example. Multilumen, Multicolour and adjustable mounting clips make it the ideal 1:1 LED refurbishment solution. It can be surface-mounted to walls and ceilings as well as suspended, is very robust and easy and flexible to install. You'll master the job with it!

Why you’ll get the job done with the 2315 G4 LED weather-proof luminaire

  • Flexible adjustment of luminaire luminous flux and light colour thanks to Multilumen and Multicolour
  • Easy and flexible installation thanks to quick connect system and adjustable mounting clips
  • Variants with integrated through-wiring available.
  • Suitable for wall, ceiling and suspended mounting.
  • UV-stabilised polycarbonate – Robust and reliable.
  • High efficiency (up to 117 lm/W).
  • Reliable service life (50,000 h, L70).
  • Removable driver and LED circuit board for optimised recycling of all components.

2315 LED at a glance

Dimensions:
1.200: 1233 x 60,5 x 60 mm, 1270 x 60,5 x 60 mm (with through-wiring)
1.500: 1233 x 60.5 x 60 mm, 1570 x 60,5 x 60 mm (with through-wiring)

Luminaire luminous flux:
1.200: 3.800 lm, 2.600 lm
1.500: 5.600 lm, 3.800 lm

Colour Temperature:
Ra > 80 / 4.000 K, 6.500 K

Connected load:
48 / 33 W, 32 / 22 W

Protection rating, Safety class:
IP65 / IK08, SK I

Weight:
1.200: 0,9 kg
1.500: 1,1 kg

Service life:
50.000 h (L70)

Downloads

Series data sheet Light technical data / Photometrics (LDT) Mounting Instruction

montagevideo

All versions of 2315 G4 LED

product reference TOC Luminous flux [lm] Wattage [W] Light colour [K] Dimensions LxWxH [mm] Replacement data sheet

Multilumen

2315 G4 1200 38/26/ML-8MC ET PC

8427440

3.800 / 2.600

32 / 22

4.000

1.233 x 60,5 x 60

1 x 36 W
2 x 36 W

Download

2315 G4 1500 55/38/ML-8MC ET PC

8427540

5.600 / 3.800

48 / 33

4.000 / 6.500

1.533 x 60,5 x 60

1 x 58 W
2 x 58 W

Download

Multilumen with through-wiring

2315 G4 1200 38/26/ML-8MC ET PC +LV

8427640

3.800 / 2.600

33 / 22

4.000 / 6.500

1.270 x 60,5 x 60

1 x 36 W
2 x 36 W

Download

2315 G4 1500 55/38/ML-8MC ET PC +LV

8427740

5.600 / 3.800

48 / 33

4.000 / 6.500

1.570 x 60,5 x 60

1 x 58 W
2 x 58 W

Download

CO2 compensation / Multilumen with through-wiring

2315 G4 S 1200 38/26/ML-840 ET PC +LV

8428740

3.800 / 2.600

33 / 22

4.000

1.270 x 60,5 x 60

1 x 36 W
2 x 36 W

Download

2315 G4 S 1500 55/38/ML-840 ET PC +LV

8428840

5.600 / 3.800

48 / 33

4.000

1.570 x 60,5 x 60

1 x 58 W
2 x 58 W

Download

8427440

8427540

8427640

8427740

8428740

8428840

000000000010241065 000000000010241066 000000000010241067 000000000010241068 000000000010314628 000000000010314630 000000000010314629 000000000010314631 000000000010314632 000000000010314633
