Dimensions:
1243 x 99 x 82 mm, 1543 x 99 x 82 mm

Luminaire luminous flux:
3400 - 6000 lm, 4500 - 8000 lm

Colour Temperature:
4000 K, 6500 K / Ra>80

Connected load:
24-43 W, 32-56 W

Protection rating, Safety class:
IP65, IK08 / SK I

Weight:
2,3 kg, 2,6 kg

Service life:
50.000 h (L80)

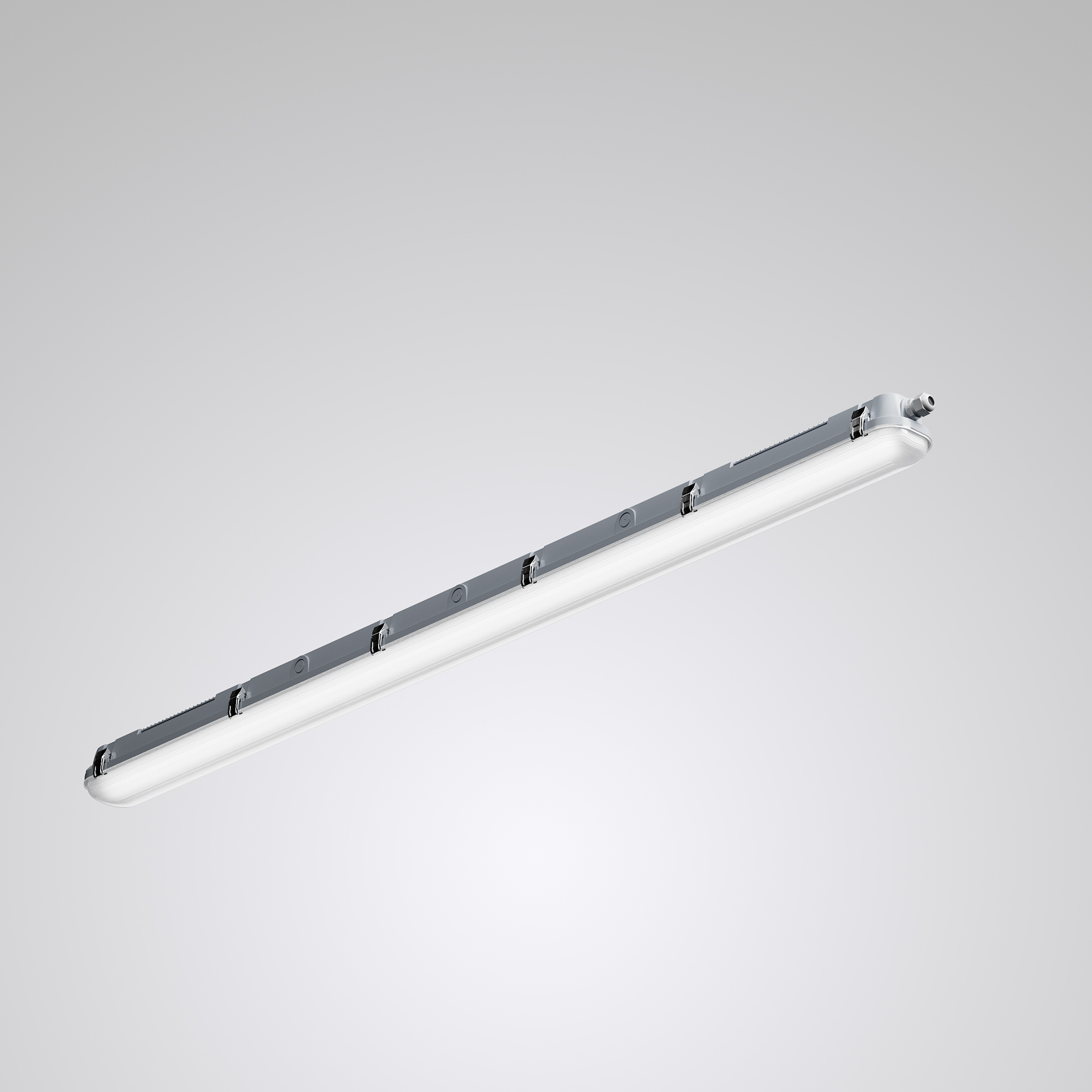

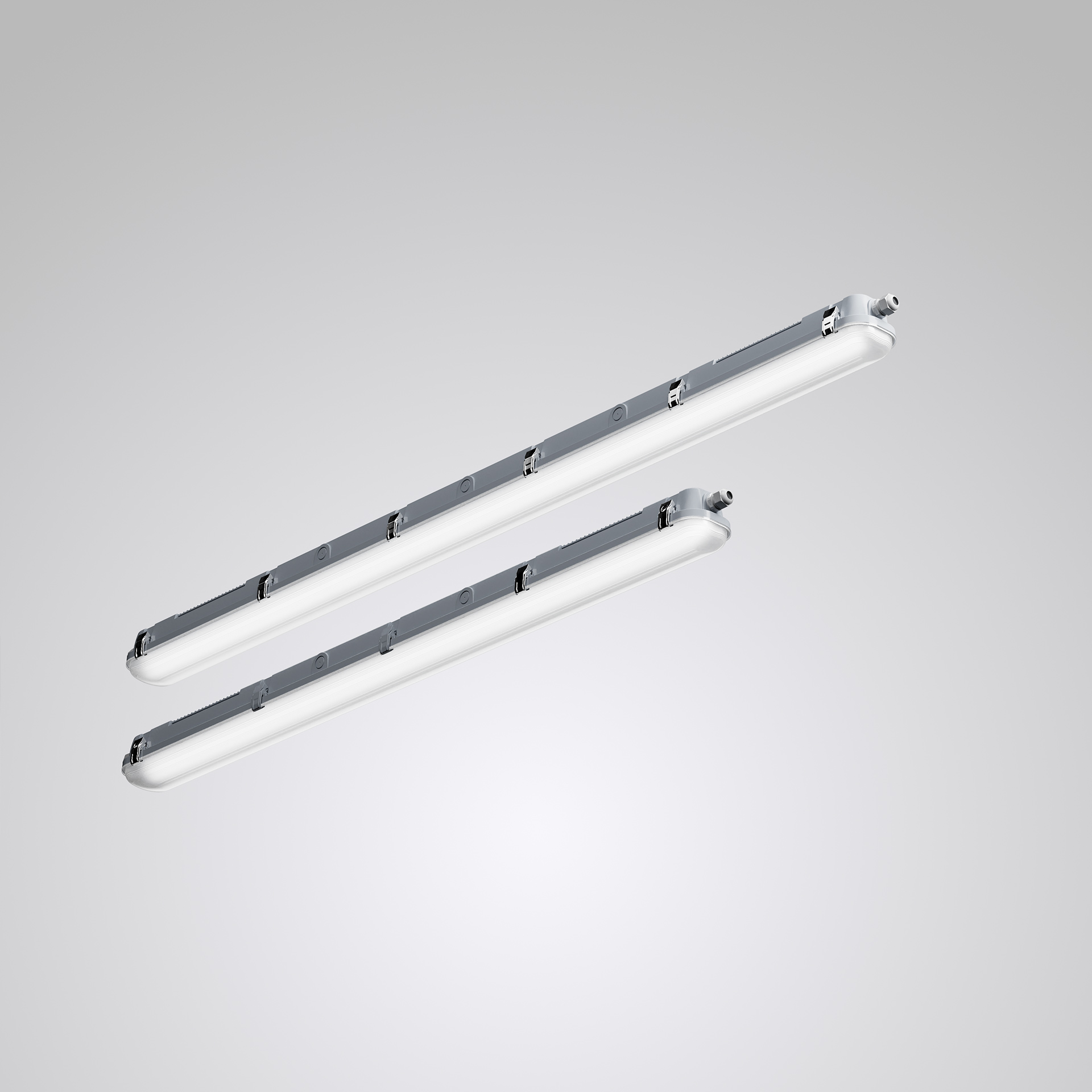

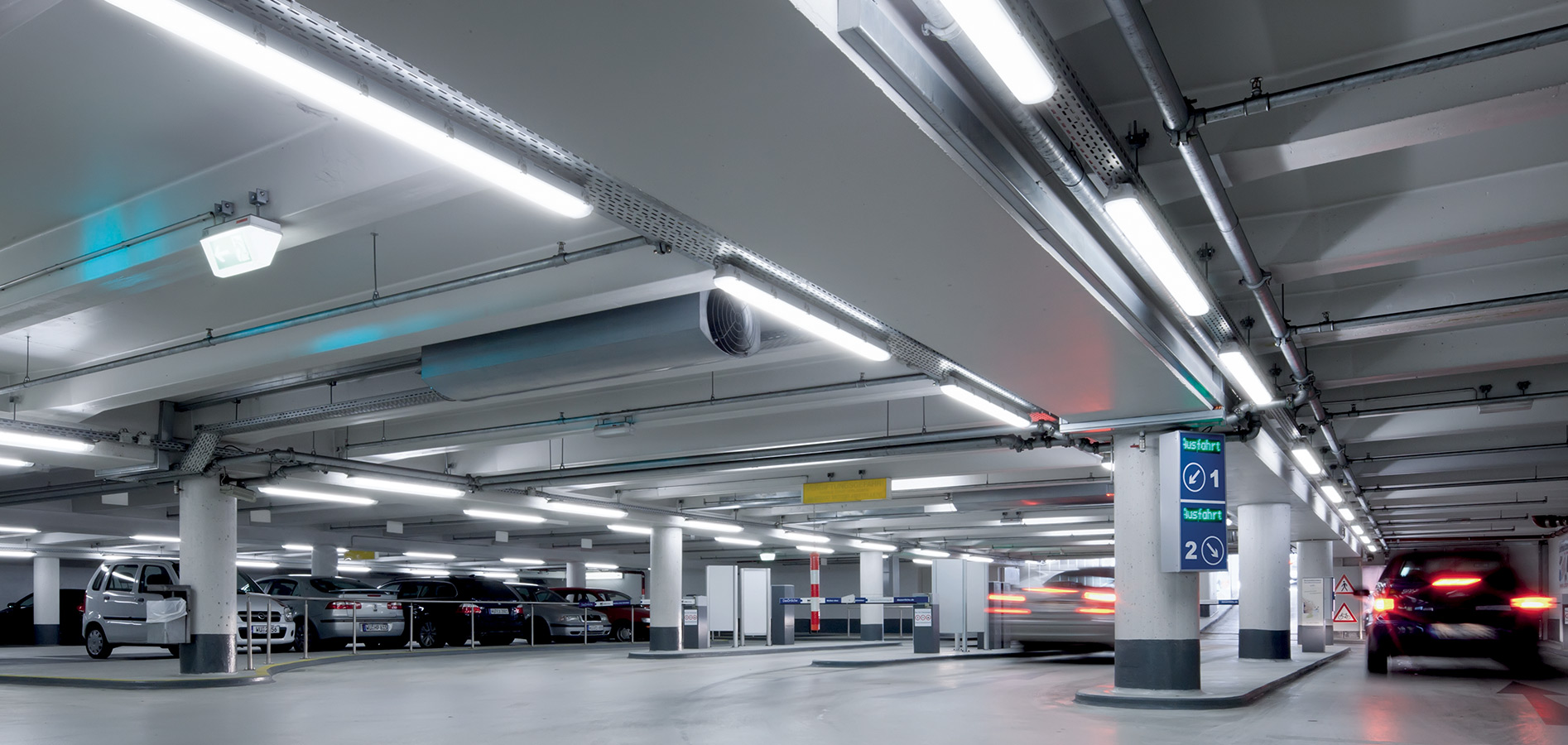

The 2310 G2 is an openable luminaire for damp environments. It impresses with its versatile application options and practical features for quick and easy installation. DALI and integrated sensors enable smart lighting control. This makes it the ideal solution for 1:1 refurbishment. Typical areas of application include car parks, storage areas, production areas and covered outdoor areas.

2310 G2 at a glance

  • Flexible use: Multi-lumen and multi-colour combine 3 luminaire luminous flux and 2 light colours in one luminaire.
  • Robust: IP65, IK08, suitable for -20°C to +40°C.

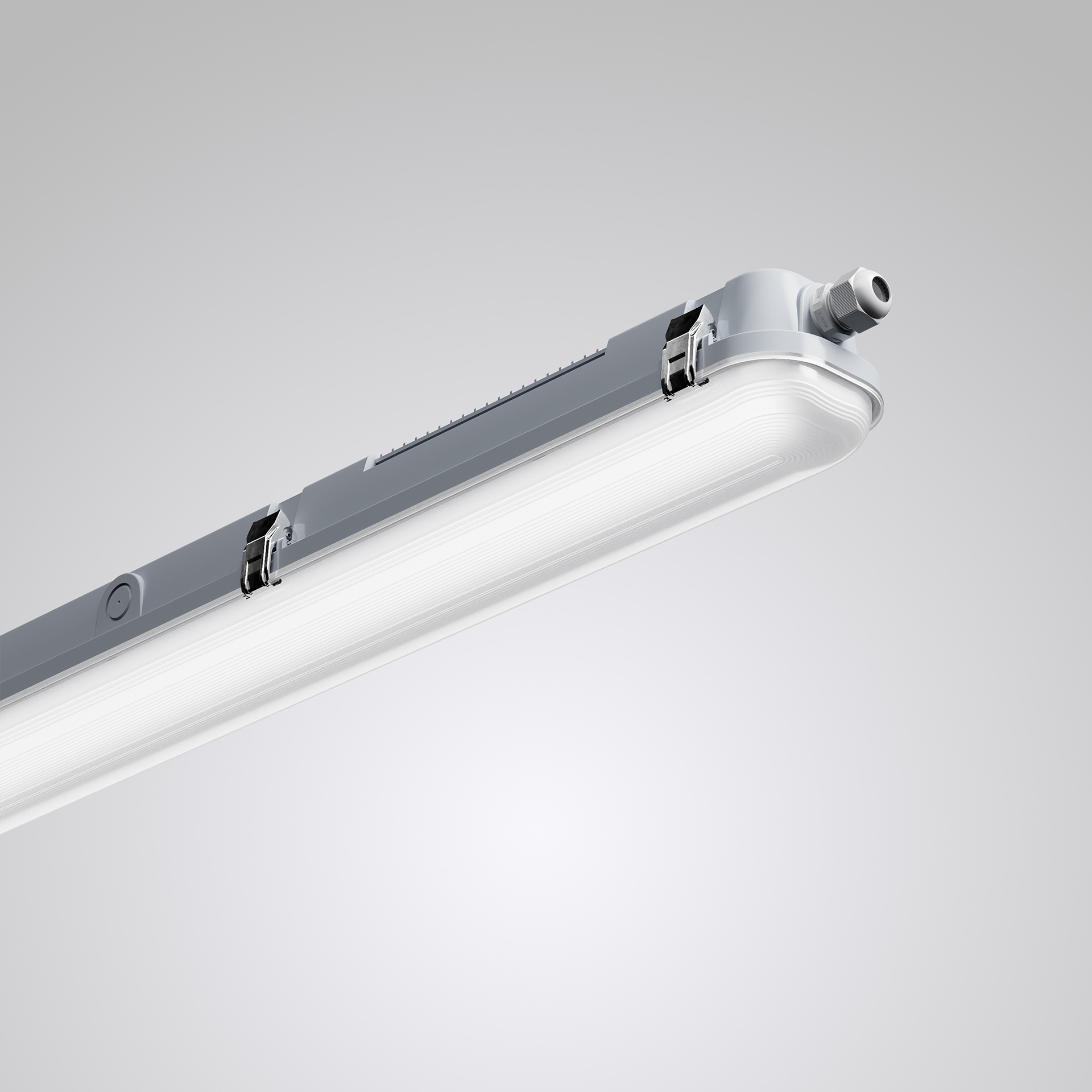

  • Practical to install: Open and close the luminaire with pre-mounted stainless steel clips.
  • Versatile: Suitable for wall, ceiling and pendant mounting. Multiple feed options on all sides.
  • Quick 1:1 refurbishment: Use existing drill points thanks to movable mounting clips.
  • Through-wiring as standard.
  • Smart use: DALI (ETDD) variants for light management systems. Types with integrated HF sensor available.
  • Wide-beam light distribution.
  • High efficiency: up to 140 lm/W
  • Reliable service life (50,000 h, L80)

2310 G2

LED Water-proof luminaire

Dimensions:
1243 x 99 x 82 mm, 1543 x 99 x 82 mm

Luminaire luminous flux:
3400 - 6000 lm, 4500 - 8000 lm

Colour Temperature:
4000 K, 6500 K / Ra>80

Connected load:
24-43 W, 32-56 W

Protection rating, Safety class:
IP65, IK08 / SK I

Service life:
50.000 h (L80)
Buy now Series data sheet

All variants of 2310 G2

Product reference TOC Luminous flux Connected load Colour temperature Dimensions Downloads

Multicolour + Multilumen

2310 G2 12 L 34-60/3ML-8MC ET PC+LV

6000701040

3400 - 6000 lm

24 - 43 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 24 W 3400 lm 142 lm/W
Level 2 4000 K 30 W 4200 lm 140 lm/W
Level 3 4000 K 43 W 6000 lm 140 lm/W
Level 4 6500 K 24 W 3400 lm 142 lm/W
Level 5 6500 K 30 W 4200 lm 140 lm/W
Level 6 6500 K 43 W 6000 lm 140 lm/W

1243 x 99 x 82 mm

2310 G2 15 L 45-80/3ML-8MC ET PC+LV

6000701140

4500 - 8000 lm

32 - 56 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 32 W 4500 lm 141 lm/W
Level 2 4000 K 40 W 5700 lm 143 lm/W
Level 3 4000 K 56 W 8000 lm 143 lm/W
Level 4 6500 K 32 W 4500 lm 141 lm/W
Level 5 6500 K 40 W 5700 lm 143 lm/W
Level 6 6500 K 56 W 8000 lm 143 lm/W

1543 x 99 x 82 mm

Multicolour DALI

2310 G2 12 L 60-8MC ETDD PC+LV

6000701251

6000 lm

43 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 43 W 6000 lm 140 lm/W
Level 2 6500 K 43 W 6000 lm 140 lm/W

1243 x 99 x 82 mm

2310 G2 15 L 80-8MC ETDD PC+LV

6000701351

8000 lm

56 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 56 W 8000 lm 143 lm/W
Level 2 6500 K 56 W 8000 lm 143 lm/W

1543 x 99 x 82 mm

Multicolour + Multilumen with Sensor

2310 G2 12 L 34-60/3ML-8MC ET+HFS PC+LV

6000701440

3400 - 6000 lm

24 - 43 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 24 W 3400 lm 142 lm/W
Level 2 4000 K 30 W 4200 lm 140 lm/W
Level 3 4000 K 43 W 6000 lm 140 lm/W
Level 4 6500 K 24 W 3400 lm 142 lm/W
Level 5 6500 K 30 W 4200 lm 140 lm/W
Level 6 6500 K 43 W 6000 lm 140 lm/W

1243 x 99 x 82 mm

2310 G2 15 L 45-80/3ML-8MC ET+HFS PC+LV

6000701540

4500 - 8000 lm

32 - 56 W

4000 - 6500 K

Light Engine Daten

Stage Colour Temperature Connected load Luminous flux Luminous efficacy
Level 1 4000 K 32 W 4500 lm 141 lm/W
Level 2 4000 K 40 W 5700 lm 143 lm/W
Level 3 4000 K 56 W 8000 lm 143 lm/W
Level 4 6500 K 32 W 4500 lm 141 lm/W
Level 5 6500 K 40 W 5700 lm 143 lm/W
Level 6 6500 K 56 W 8000 lm 143 lm/W

1543 x 99 x 82 mm

Downloads

Keine Downloads für die aktuelle Auswahl vorhanden.
2310 G2 - LED Water-proof luminaire
Buy now Series data sheet
